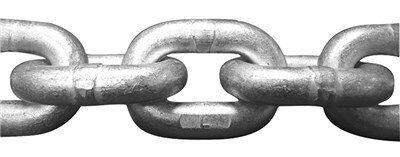

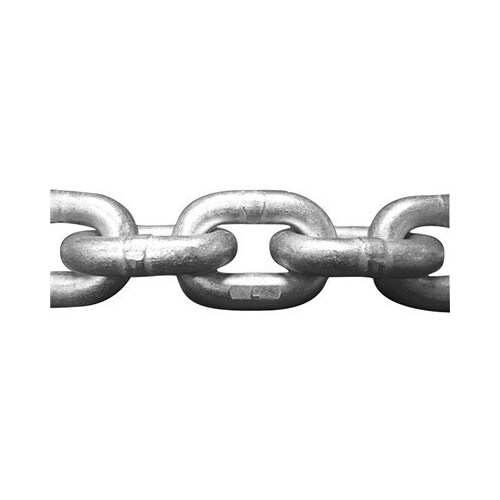

Grade L is low carbon steel chain specifically manufactured to Australian Standard AS2321-2006. Used for anchoring and mooring applications, Grade L calibrated short-link design ensures proper fit for most Australian windlasses.

  • Hot dip galvanised for best protection against corrosion and abrasion
  • Can be purchased by the metre or drum


Cat. No.  Link Dia. Pitch/Width Max Working Load Breaking Strength Drum Size/Weight
MAC282 6mm 18mm/7.5mm 445kg 1818kg 60m/48kg
MAC284 8mm 24mm /26mm   818kg   3272kg 34m/48kg
MAC286 10mm 30mm/32.5mm  1270kg  5090kg   22m/50kg
MAC288 13mm  39mm/42.3mm 2045kg 8181kg   13m/50kg
Note: Pitch = Inside Length


MAC282 6mm Short Link Grade 'L' (G30) Calibrated Chain
MAC284 8mm Short Link Grade 'L' (G30) Calibrated Chain
MAC286 10mm Short Link Grade 'L' (G30) Calibrated Chain
MAC288 13mm Short Link Grade 'L' (G30) Calibrated Chain
SKU AM-MAC282
