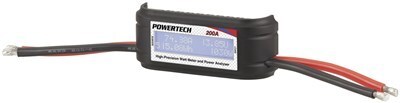

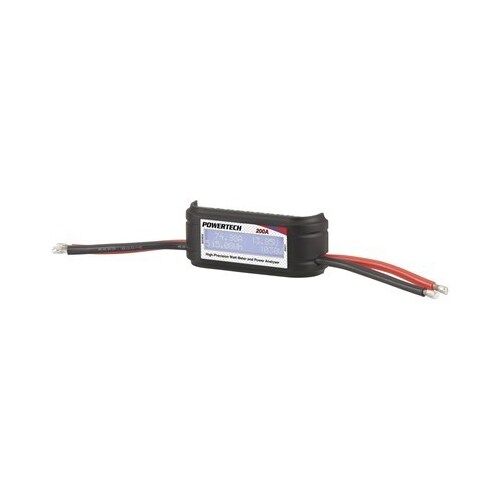

This exceptional trouble shooting device is not just a watt meter it is an All-in-one power meter, volt meter, amp-hour meter, ammeter and energy meter. It’s designed for systems less than 60V and currents up to 200A (Peak). Slotting in between various links of a power system it can check charge going to a battery from battery charger or alternator, solar panel output, charge controller output, health and performance of batteries, evaluate charging efficiency or measure power and energy consumption of any load device with a battery. The Watt Meter only requires a tiny 7mA draw to operate making little difference to power production during usage. Ideal for cars, boats, caravans, off-grid installations, Wind, solar installations, and so much more.


Features:
- 75A continuous / 200A Max
- Up to 60VDC compatibility
- Accurate amps, volts, watts, amp-hours, watt-hours, peak amps, minimum volts (sag), peak watts

Applications:
1) How Much Power Does my Fridge Use - with the Battery connected to the SOURCE side and Car Fridge (or other accessory) connected to the LOAD side. The Watt Meter shows the current into the Fridge, voltage and power at the battery and accumulates the Ah and Wh while the fridge is running.

2) How much charge is going into my battery - With a battery charger (or alternator) connected to the SOURCE side and the aux battery connected to the LOAD side, the Watt Meter shows the charging current into the battery, the voltage and charging power at the battery and accumulates the charge (Ah) and energy (Wh) into the battery.

3) What is the output of my solar panel - With a solar panel connected to the SOURCE side and solar regulator connected to the LOAD side, the Watt Meter shows the charging current into the regulator, the voltage and charging power at the solar panel and accumulates the charge (Ah) and energy (Wh) into the regulator.

4) How much charge is my solar panel putting into my battery - Now with a solar regulator connected to the SOURCE side and battery connected to the LOAD side, the Watt Meter shows the charging current into the battery, the voltage and charging power at the regulator and accumulates the charge (Ah) and energy (Wh) into the battery.

Specifications:
Reads:  4.8V - 60V (0V - 60V with optional auxiliary battery).
Measures:
o   Current: 0-200A @ 0.01A Resolution
o   Voltage: 0-60VDC @ 0.01V Resolution
o   Power: 0-6554W @ 0.1W Resolution
o   Watt Hours: 0-650kWh @ 0.1Wh Resolution
o   Ampere Hours: 0-6554Ah @ 0.01Ah Resolution
Cable: 8AWG
Display: 16 x 2 backlit LCD Display
Dimensions:  110(W) x 45(H) x 26(D)mm (Excluding Cables)
Net Weight:  150g

SKU AM-MS6190
