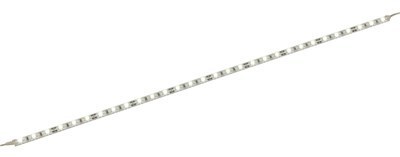

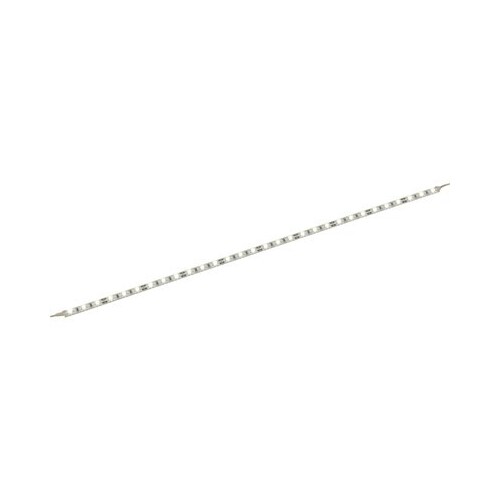

An efficient, bright and affordable LED lighting solution, which is safe and easy to install. Each strip features wide angle, high brightness SMD LEDs which are powered by either 12VDC or 24VDC. They are fixed easily using the strong 3M brand self adhesive backing tape or mounted into a range of aluminium and plastic extrusions and diffusers available separately. Each 500mm length can be snapped into individual segments and each segment is powered by 12VDC. Applications include under cabinet kitchen bench lighting, hallway or mood lighting, marine/caravan/motorhome lighting, commercial strip lighting, retail shop fit outs, and many many more.

Features:
• 8mm strips fitted with 3528 single chip SMD LEDs
• Strips can be snapped into individual segments and powered individually
• Strips can be integrated with our aluminium and plastic extrusions and diffusers


Specifications
LED quantity per strip 30
Descripiton LED SMD 8mm Bar, 50cm, White
Total Power per strip 2.4W
Input Current 200mA
Input Voltage 12VDC
Current Per LED/Segment (mA) 20mA
No. of Segments 10
LED Quantity /Segment 3
Power Consumption per segment 0.24W
Max. no of strips to one power feed 10
Lumen output per strip 150
mCd per LED 2000mCd
Beam Angle 120°
Size 500 x 8mm
IP Rating None
SKU AM-ZD0461
