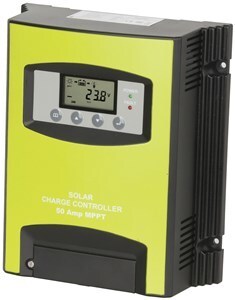

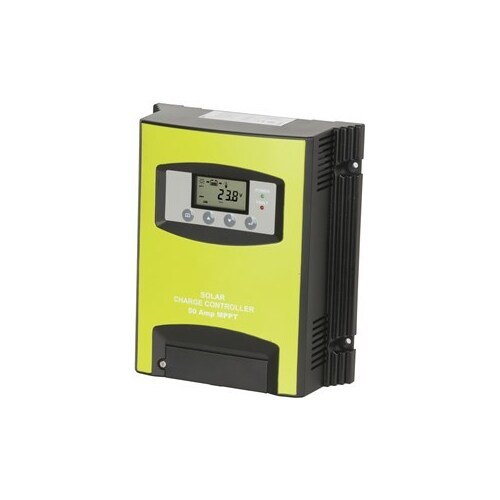

A highly intelligent charge controller for use with solar installations. Use with 12, 24, 36, or 48V battery banks. Maximum Power Point Tracking (MPPT) for maximum efficiency and charge rate. For use with solar arrays up to 95VDC. It features adjustable bulk and float charge voltages to fine-tune for your installation, and heavy duty terminals for heavy gauge cabling. The LCD provides feedback on charge status, current and voltages. Built into a durable heatsink case for permanent installation.

Features:
- High Efficiency MPPT Charging
- Automatic Charge Management
- Overcharge Protection
- Under-Voltage Protection
- Reverse Current Protection

Specifications:
Compatible Battery Bank Voltages: 12 / 24 / 36 / 48VDC Selectable
Maximum Input Power: 650W (12VDC System)
                                    1300W (24/36/48VDC System)
Input Voltage: 16 - 95VDC
Max Charging Current: 50A (12 / 24VDC)
35A (36VDC)
25A (48VDC)
MPPT Efficiency: ≥ 99%
Max Load Current: 50A
DC Load Output Voltage: Battery Voltage
Over Discharge Voltage: 11.3 / 22.6 / 34.2 / 45.6
Overnight Standby Current: 60mA Max
Weight: 2kg
Dimensions: 202(W) x 235(H) x 88(D)mm
SKU AM-MP3731
