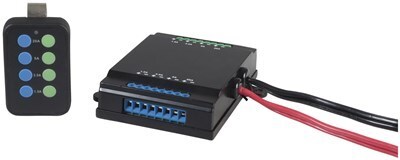

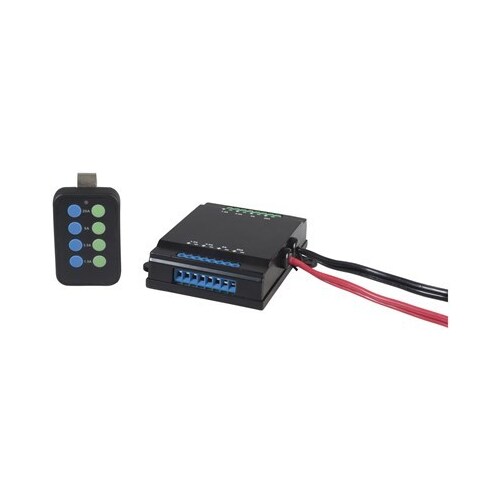

This extremely useful lighting controller gives you wireless control over your light bars, driving lights, caravan lights and any other 12V powered device. 8 output channels over two zones provides the ability to switch lights on and off at the touch of a button. The two main (green and blue) zones each have 4 outputs for up to 20, 5, 3.5, and 1.5A output respectively. Total power load is up to 60A (that’s a lot of light bars!). The controller is fused for safety, so you can connect it straight to your vehicle battery, and your light bars to the controller - simple! Lights are quickly connected into the screw-down terminals, and the control box has mounting tabs for secure mounting in your vehicle.

Specifications:
Max Power Output: 12VDC @ 60A
Rated Input Voltage: 12VDC
Working Voltage: 11-15VDC Input Low
Voltage Protection: 9.5VDC +/- 0.3VDC
Remote Control Battery: 12V A23 Alkaline
Wireless frequency: 433mhz
Dimensions: 135(W) x 132(D) x 35(H)mm (Excluding Cables)
SKU AM-MS6210
