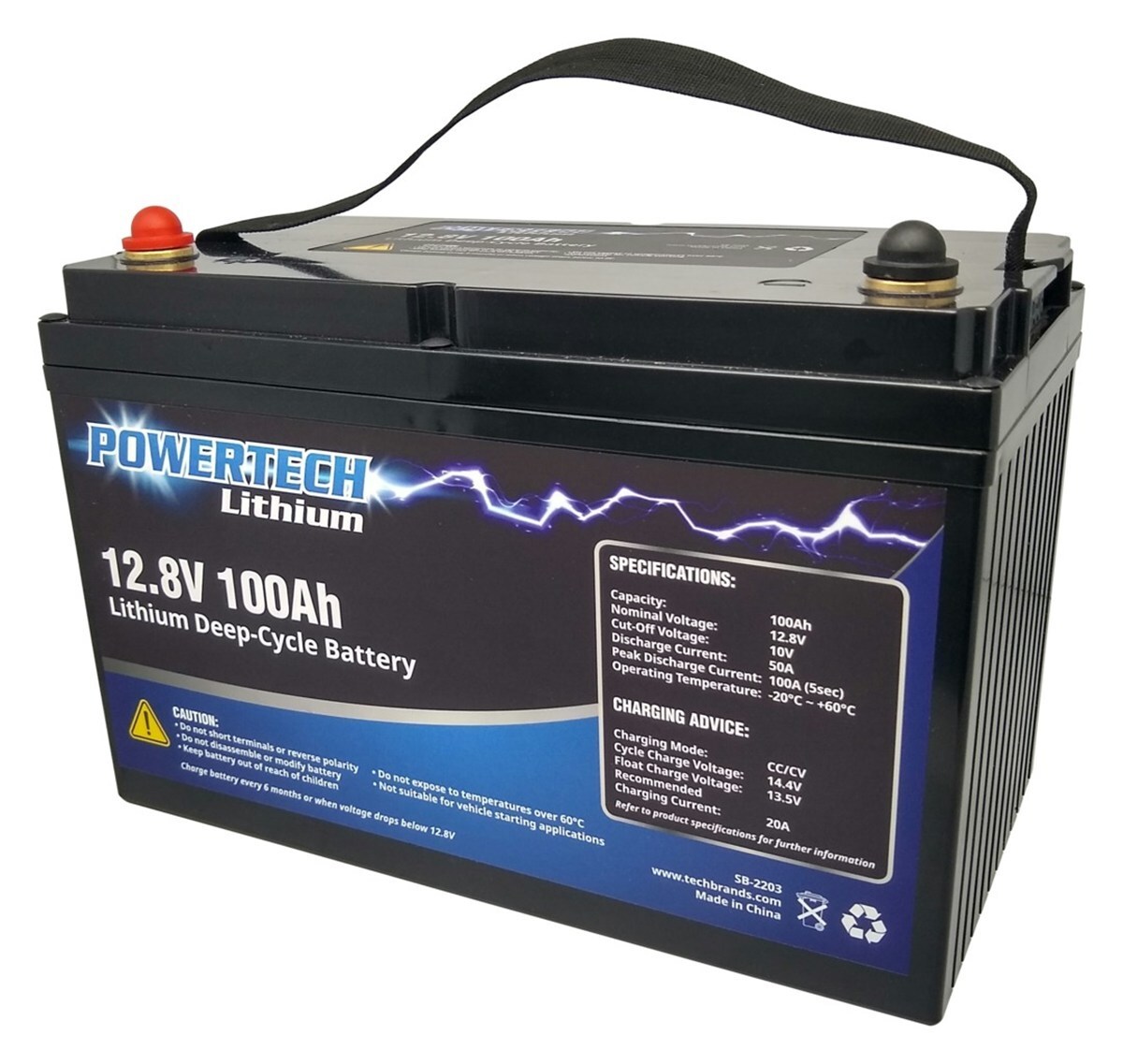

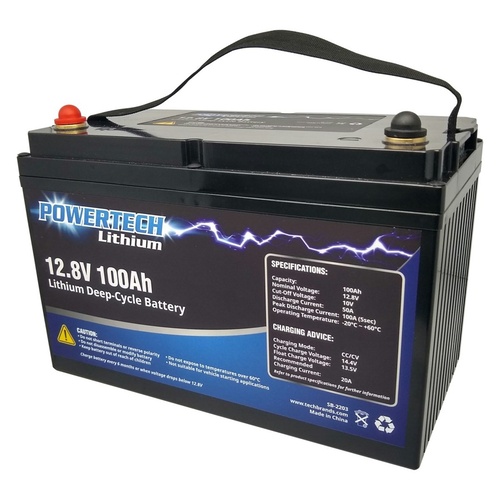

The next generation of power storage is here! These LiFePO4 batteries weigh less than half of their Lead Acid counterparts. They may look fairly similar to lead acid batteries, but internally they’re a totally different, next generation concept. They’re actually made up of regular 26650 LiFePO4 cells, which are in mass production for many portable devices. An internal battery management system (BMS) ensures all cells are uniformly charged and discharged, as well as providing short circuit, over current, and reverse polarity protection. This provides you with a higher degree of protection than a traditional lead acid battery which is unprotected, and can discharge rapidly under short circuit conditions, causing fire and damage. The internal BMS will also limit discharge and manage cut-off voltage, to further protect the internal cells.

This 100Ah model can provide continuous current up to 50A, with peaks of up to 100A. It’s not suitable for a primary vehicle starting battery, however is absolutely perfect for house batteries, backup batteries, and virtually any other application where you would typically use a large lead acid / AGM battery.

Features:
- Much lighter than Lead Acid and AGM Batteries
- Robust LiFePO4 Cells
- Excellent life span

Specifications:
Service Life: 10yrs+
Cycle Life: 1500+ cycles (> 80% capacity retention)
Nominal Voltage: 12.8V
Cut-Off Voltage: 10V approx.
Charge Type: Constant Current / Constant Voltage
Discharge Current 50A
Max Continuous Current ≤100A (5 sec)
Internal Cells: 26650 LiFePO4
Maximum Internal Resistance: 35M?
Output Terminals: M8 Bolt Down
Operating Temperature: 0-45°C (60°C max discharging)
Operating Humidity: RH < 85%
Storage Temperature: 0-40°C (15-25°C recommended)
Storage Humidity: RH < 50%
SKU AM-SB2203
