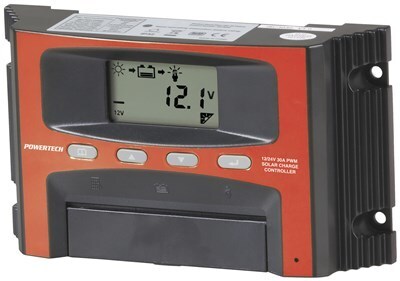

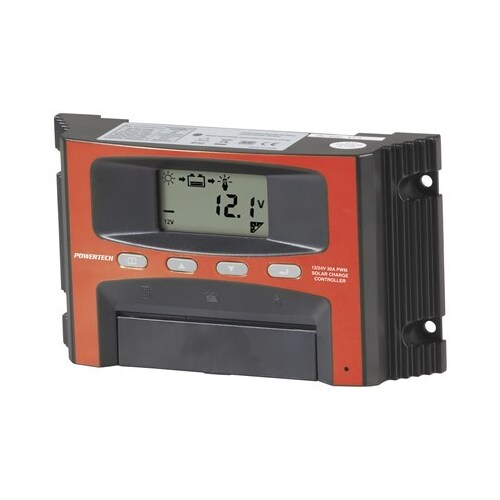

A highly efficient and reliable solar charge controller which uses regulated charge rates to safely and correctly charge your battery. It automatically detects 12 or 24 volt inputs and can be left on permanently in maintenance mode to ensure battery stays at an appropriate level. Dual timer feature allows for loads (12/24 Volt appliances) to be controlled at certain times during the night when needed. An intuitive LCD screen displays various smarts allowing users to access voltage capacity, charging current, Timer and many more features.

Features:
- Auto Input Detect
- High efficiency
- LCD Backlit display
- Dual Timer

Specifications:
Maximum Input DC Current: 30A
Maximum Open Circuit Voltage: 29VDC @ 12VDC, 45VDC @ 24VDC
Maximum Load DC Current: 30A
End of Charge Voltage: 14.4/28.8VDC±2%
Deep Discharge Protection Voltage: 11/22VDC±2%
Battery Rated Voltage: 12/24VDC
Typical Idle Consumption: 20mA
Operating Temperature: -20°C/+50°C
SKU AM-MP3754
