Weatherproof Mains External Hardware
These products are designed to mount to the outside of your caravan and RV to provide 240V inlet or outlet facilities. They are approved and have high level dust and water ingress protection. All products listed have 1 year warranty. All are white high impact ABS.

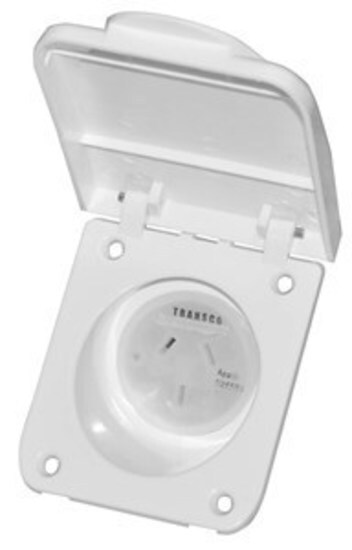

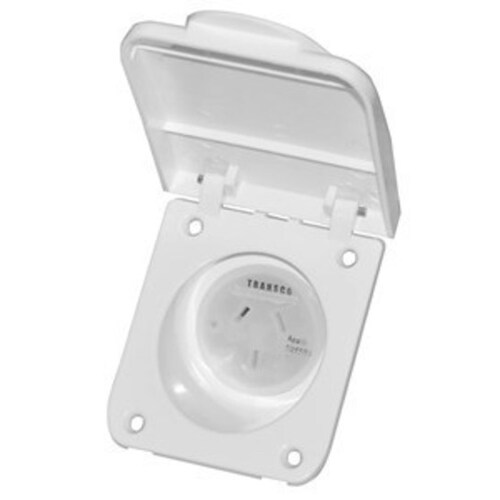

10A Mains Powered Outlet IP44

This is a standard 10 Amp power outlet version of the TEV250. You can use a domestic power lead with this. We do recommend, however, the 15A unit TEV250 for caravan/RV use.

This unit is a plug type connector. It is water/dust ingress rating IP44. It comes with two foam gaskets, one 3mm thick (for smooth sided vans) and a 6mm thick foam gasket to accommodate textured panels. You can use either gasket as a panel cutting template.

The outside cover has a cover/flap which has "Inlet 10A" stamped on it. It closes automatically when not in use.

Fixing is via 4 x No. 8 x 1/2" countersunk self tappers (not supplied) or 4 x 4.5mm x 12mm metal thread screws if you have access to the inside of the panel.

Dimensions (external): 110(H) x 80(W)mm. 50mm clearance is required behind the mounting panel.

Also available:
TEV250: 15A 240V Power Inlet
TEV254: 13mm Surface Mount Spacer
TEV256: 20mm Surface Mount Spacer

SKU AM-TEV252
